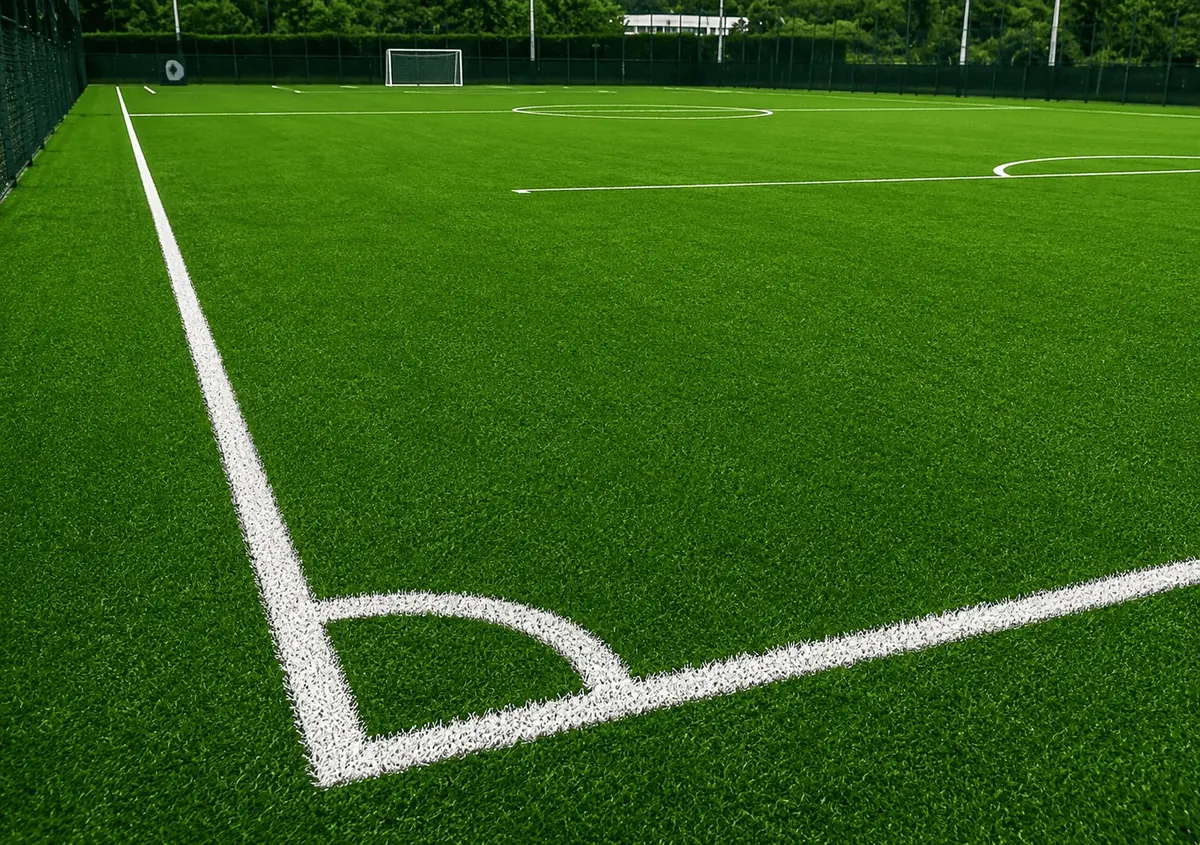

Turf surface · 50 MM pile50MM
Stem Pro
Bellinturf View page →DTEX12,000
Density8,190
Stitch13/10
Gauge5/8"
Surface 01 / 05 · Performance turf
Football turf.
FIFA Quality Pro systems from 12,000 to 18,000 dtex, mill-direct from Bellinturf and CCGrass, laid on a base we build ourselves.
Federation certified systems, sourced direct from the mills.
12–18K dtex
Four tiers, one for every level of play
14systems
Infill and non-infill, dual-colour throughout
50mm
Standard pile height on infill systems
10yr max
Service life on a maintained pitch
Pick your grade.
Dtex is the weight of the grass yarn. A heavier yarn lasts longer under studs. Pick by how many hours a week the ground will be used, not by the biggest number.
12,000 dtex/ 01, Foundation · 5–7 yr lifespan
Turf surface · 50 MM pile

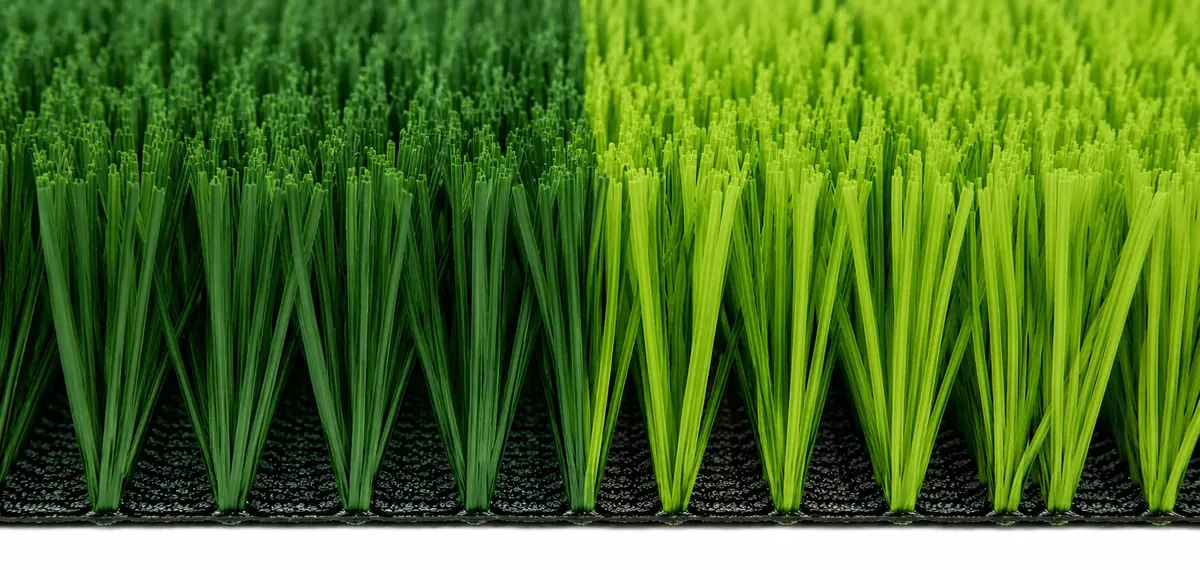

Turf surface · 50 MM pile50MM
Diamond
Bellinturf View page →DTEX12,000
Density8,190
Stitch13/10
Gauge5/8"

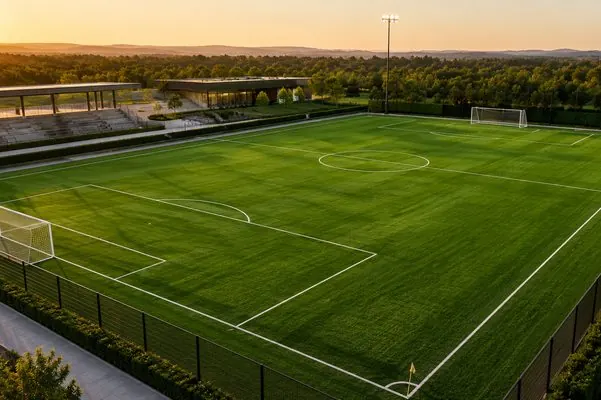

Turf surface · 50 MM pile50MM
Prime CM
CCGrass View page →DTEX12,000
Density8,820
Stitch14/10
Gauge5/8"
White lines inlaid in green
Line marking
White Turf
A pure all-white pile made mainly for line marking, the lines, boundaries and key zones set into the green field. Tufted in, not painted, so the markings stay crisp and never need repainting.
12,000 DTEX
50 MM pile
8,820 density
All-white pile
0.1 × 25 m roll
14,000 dtex/ 02, Performance · 8–10 yr lifespan

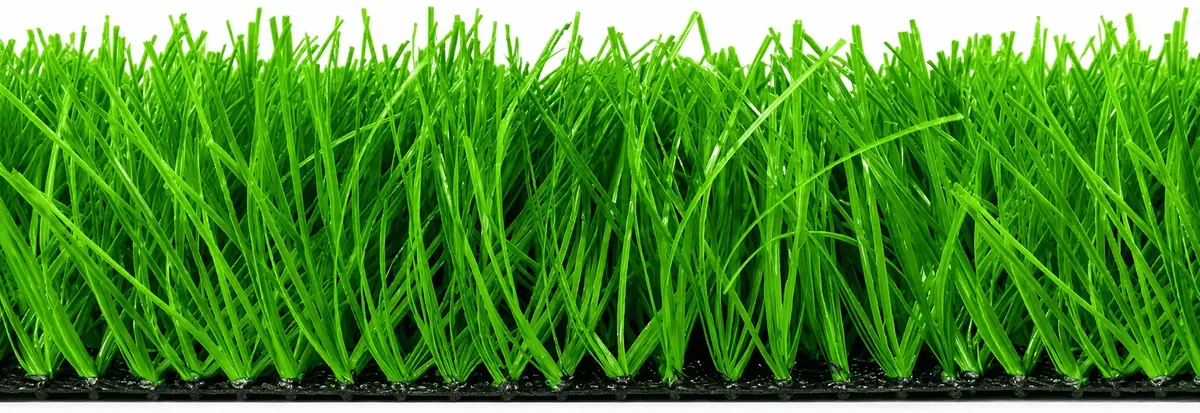

Turf surface · 50 MM pile50MM
Strength
Bellinturf View page →DTEX14,000
Density8,820
Stitch14/10
Gauge5/8"
Turf surface · 50 MM pile50MM
Bellin-Stem
Bellinturf View page →DTEX14,000
Density8,190
Stitch13/10
Gauge5/8"
16,000 dtex/ 03, Pro · 6–10 yr lifespan

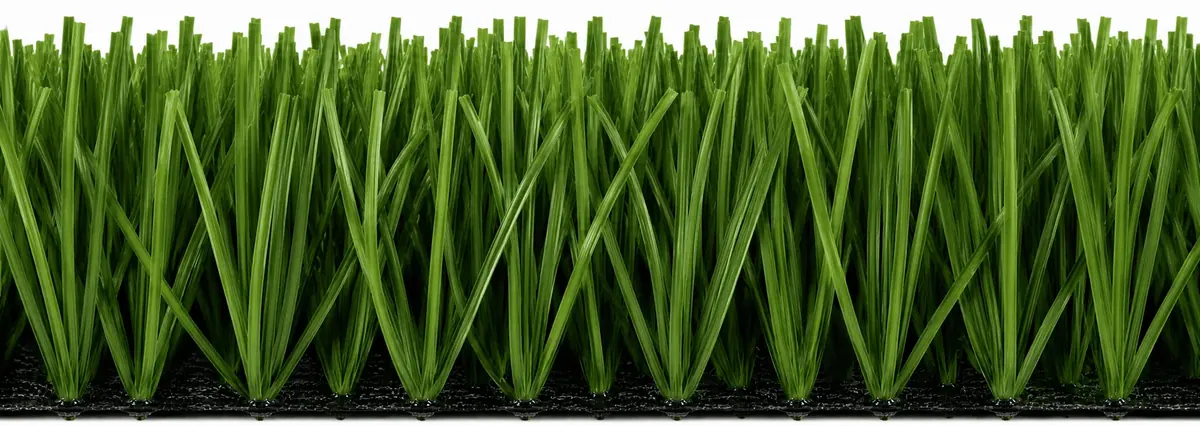

Turf surface · 50 MM pile50MM
Strength-Pro
Bellinturf View page →DTEX16,000
Density8,820
Stitch14/10
Gauge5/8"

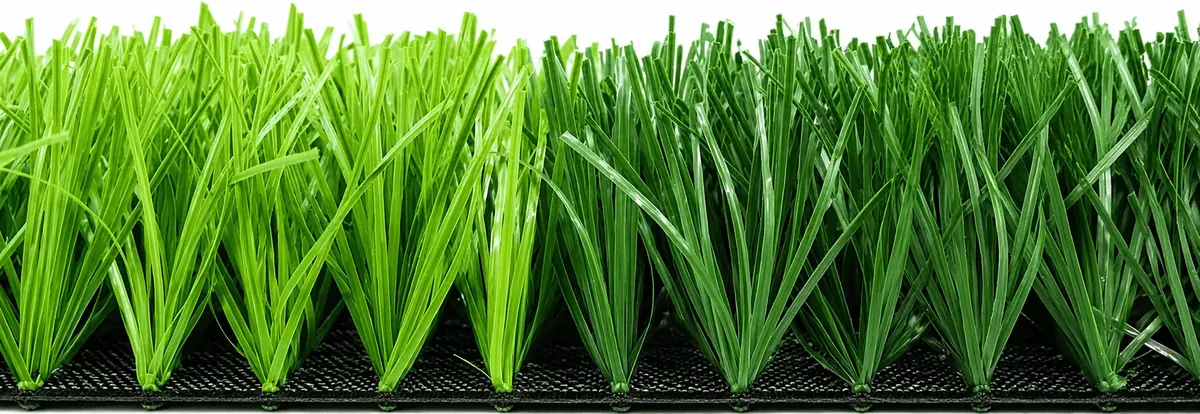

Turf surface · 50 MM pile50MM
Pioneer
Bellinturf View page →DTEX16,000
Density8,820
Stitch14/10
Gauge5/8"

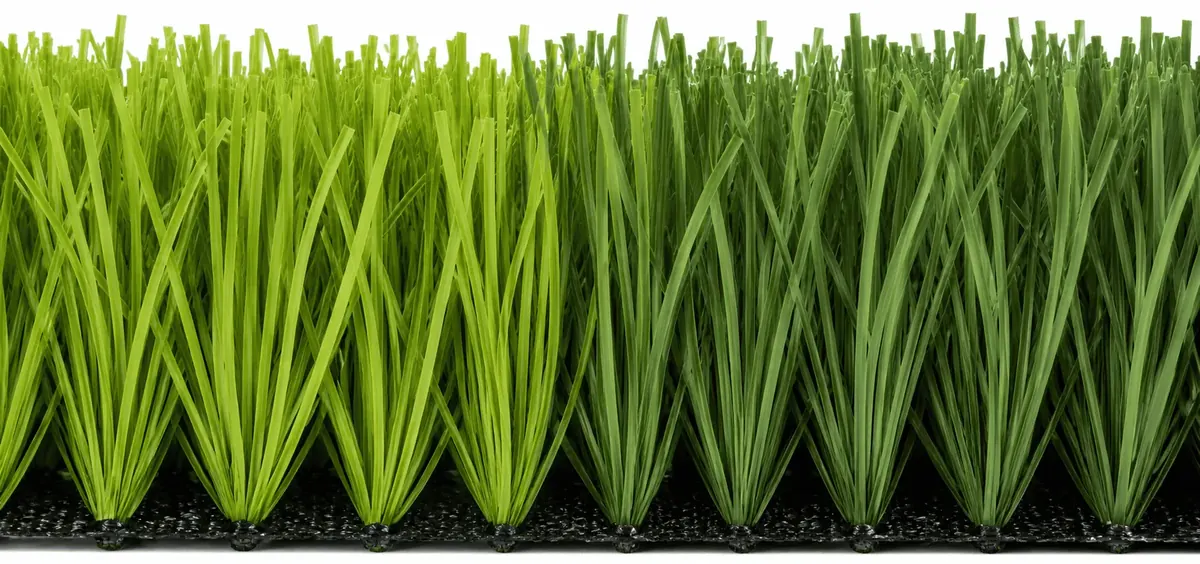

Turf surface · 50 MM pile50MM
Libra
CCGrass View page →DTEX16,000
Density8,820
Stitch14/10
Gauge5/8"
18,000 dtex/ 04, Flagship · 8–10 yr lifespan

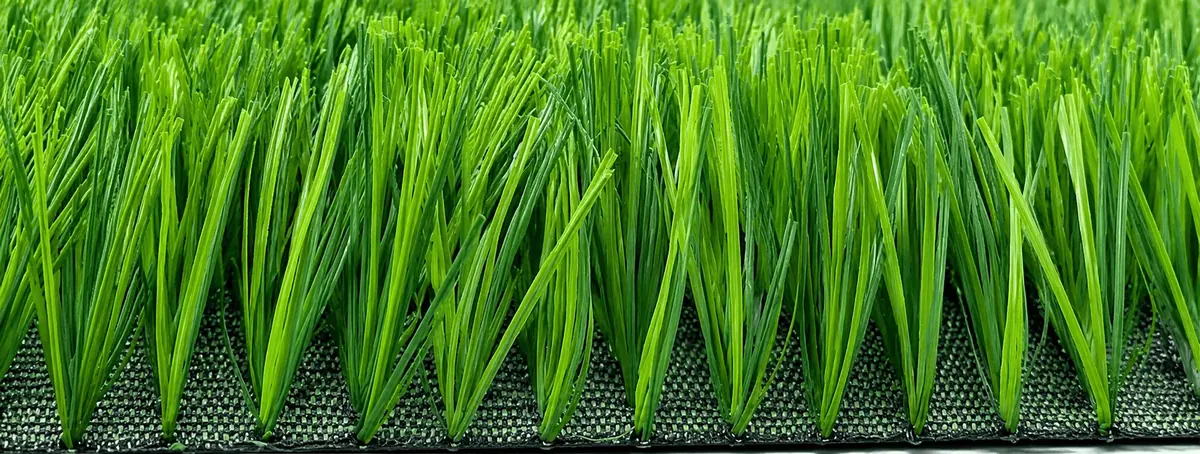

Turf surface · 50 MM pile · Flagship50MM
Legend
View page →DTEX18,000
Density8,820
Stitch14/10
Gauge5/8"
Non-infillrange/ 05, Less infill · 5 yr lifespan

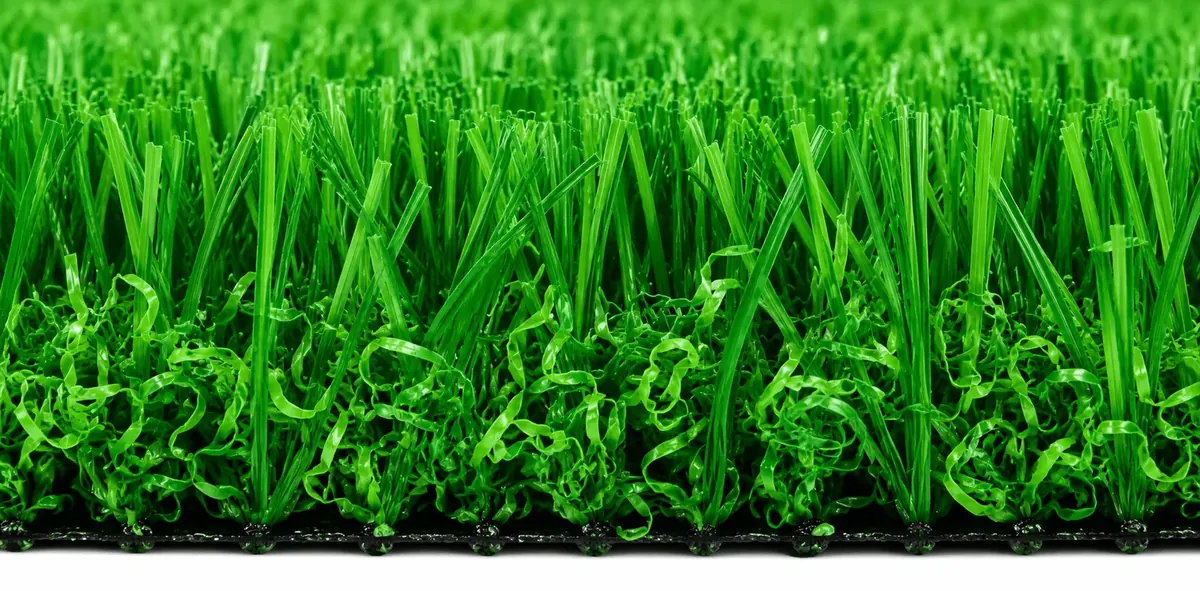

Turf surface · 30 MM low-pile30MM
Non-Infill
BellinturfDTEX13,000
Density17,900
Stitch17/10
Infill1.4 KG / sqft
Turf surface · 40 MM mid-pile40MM
Non-Infill
BellinturfDTEX13,000
Density17,900
Stitch17/10
Pile40 mm

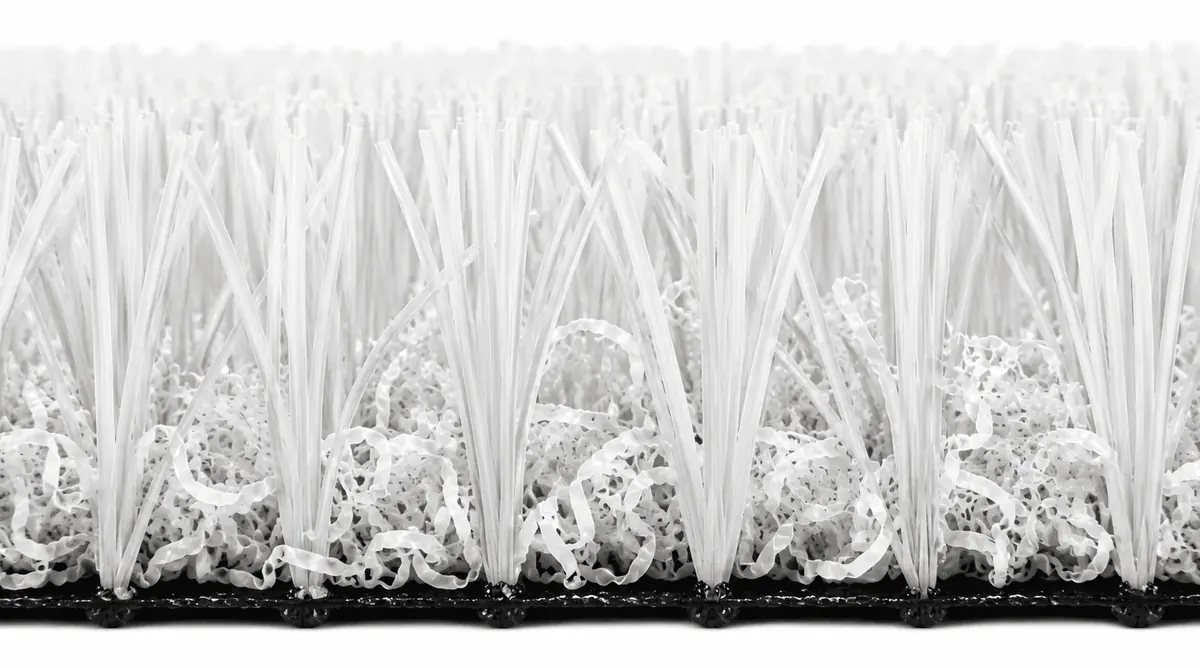

Turf surface · 30 MM white30MM
White Non-Infill
BellinturfDTEX13,000
Density21,000
Stitch20/10
Infill1.4 KG / sqft
Turf surface · 30 MM low-pile30MM
Non-Infill Lite
BellinturfDTEX13,000
Density13,900
Stitch13/10
Pile30 mm
Which one is yours?
Recreation, 5-a-side rental
Light to medium daily use. Cost-conscious build, dependable feel.
12K · Stem Pro, Diamond →School, academy ground
Daily training, weekly matches. Built to outlast a generation of students.
14K Strength · 16K Pioneer →Tournament, pro club
Full-contact, full-season. Cameras on, sliding tackles, visiting referees.
16K Strength-Pro · 18K Legend →Base to line marking, one partner.
A surface is only as good as what it sits on. ILAN builds the base, lays the turf and marks the lines, so one team owns the levels, the drainage and the result.
/ 01
Excavation & grading
Cut to formation level, proof-rolled, graded to the designed falls (0.5–1%) so water leaves the field, never pools on it.
/ 02
Sub-base
Granular sub-base (GSB) 150–200 mm and wet-mix macadam (WMM) 100–150 mm, compacted in layers and tested for density.
/ 03
Finished base
Dense asphalt 40–50 mm or PCC, laid to a 3 mm over 3 m flatness tolerance, with shock pad where the system calls for it.
/ 04
Drainage & edging
Perimeter drains, catch pits and kerbing, so the surface stays dry and the edges hold for years.
Every quotation includes adhesive, seam tape, infill and netting as a turnkey system.Request a quote
The details.
Budgeting? Read the 2026 cost guide, run the cost calculator, or see the turf business payback maths.
Want the whole ground built? See turnkey football turf construction, base to line marking, and how a pitch goes down, step by step.
What comes in the install kit
Envirostik Adhesive
12 KG glue + 1.2 KG hardener · 90:10 mix · 60-min pot life
SeamPro Tape
0.3 M × 100 M roll
Silica Sand
Engineered grain · for non-infill systems · 1.4 KG / SQFT
Garware Net
10 M × 30 M roll · braided / knotless / twisted variants
Keeping a pitch playable
Weekly
Clear leaves and litter. Debris trapped in infill holds moisture and shortens fibre life.
Monthly
Drag-brush the full field to redistribute infill and lift the pile. This is the single most valuable thing you can do to a football pitch.
Seasonally
Check infill depth across the field, goalmouths and centre circle lose it fastest, and top up. Decompact high-traffic zones.
Annually
A deep-clean and decompaction pass, plus a seam and line-marking inspection before the season.
Questions, asked often
How long does a football turf pitch last?
Service life is driven by traffic hours, sun exposure and maintenance far more than by the roll. A well-maintained, correctly based pitch on a quality system lasts many seasons; the same system unbrushed with infill left low will not. Warranty terms are confirmed per system, ask for the current data sheet.
What is dtex, and does a higher number mean better?
Dtex is the weight of the yarn, how much material is in each fibre. Higher dtex means a heavier, more durable fibre, which is why our range runs from 12,000 up to 18,000. But higher is not automatically right: the correct dtex depends on the level of play and the traffic the pitch will take.
Infill or non-infill, which do we need?
Infill systems use sand and rubber to support the fibre and give the ball-roll and shock absorption competitive football expects. Non-infill is chosen for rooftops, small-sided courts and areas where infill migration or loading is a problem. We will tell you which your project actually needs at survey.
Do you supply FIFA-certified systems?
We supply systems tested to FIFA standards and can provide the test reports for them. Note that a FIFA-certified field requires the installed pitch to be tested and certified separately, that is a distinct step from using a certified product, and we are clear about which you are buying.
Can it be laid on our existing ground?
Usually, if the base is sound, level and drains. If it ponds, cracks or moves, laying over it transfers the problem upward. We check the base at survey and tell you honestly which case you are in.
How does it handle monsoon?
A properly based and drained pitch sheds water and is playable soon after rain. Standing water is nearly always a base or falls problem rather than a turf problem.
What is the difference between your 12k, 14k, 16k and 18k ranges?
Dtex and, with it, fibre weight and durability. Broadly: 12k for recreational and budget-led projects, 14k–16k for club and school pitches in regular use, 18k for the heaviest training loads. Each product page carries the full specification.
Do you handle line marking and goals?
Line marking is part of a turnkey scope. Goals, nets and fencing can be supplied alongside, we also manufacture and supply sports netting.
